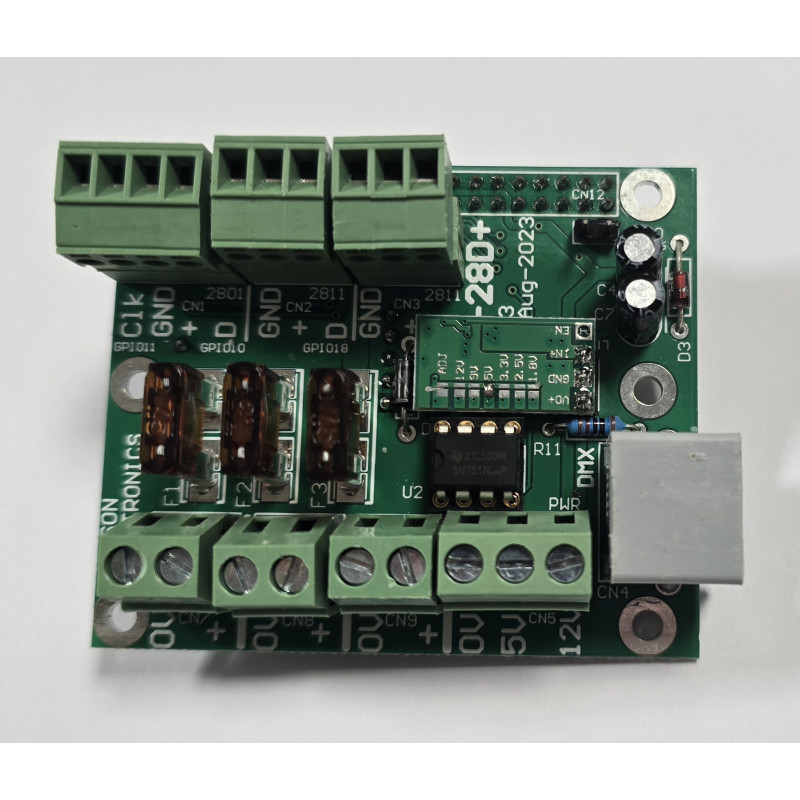

Supports 2 2811 pixel outputs (up to 800 pixels per output) Supports 1 2801 pixel output (up to 800 pixels per output) (or an extra 2 x WS281x with FPP6 - see the video linked at the bottom of this description.) Supports 1 non-isolated DMX outputs
Runs under Falcon Player (FPP) Has 75HC245 to level shift signals from Raspberry Pi 3.3V logic to 5V logic
Can power cape and Raspberry Pi from 5V or 12V input Uncommitted connection to GPIO pins for external use. Powering down, starting show, changing sequence etc. Mounting holes to suit Pi 2, Pi 3 and Pi Zero
Real Time Clock (RTC) for show scheduling
Supplied with M2.5 Nylon spacers to separate the Pi and rPi-28D
3 fused power inputs for the 3 pixel outputs. 5V , 12V and/or 24V pixels can be connected Supplied with 3 7.5A ATO automotive fuses
Note: Raspberry Pi & micro SD card are not supplied. Included in photos to show the application.
A Class 10 SD/Micro SD card is recommended and 16-32 GB is the recommended size range.
The rPi-28D+ requires a Raspberry Pi (2, 3, 4 or Zero) running Falcon Player and configured with channels, sequences and channel output settings must be configured.
Note: This hat will not require a licence for use with FPPv6
