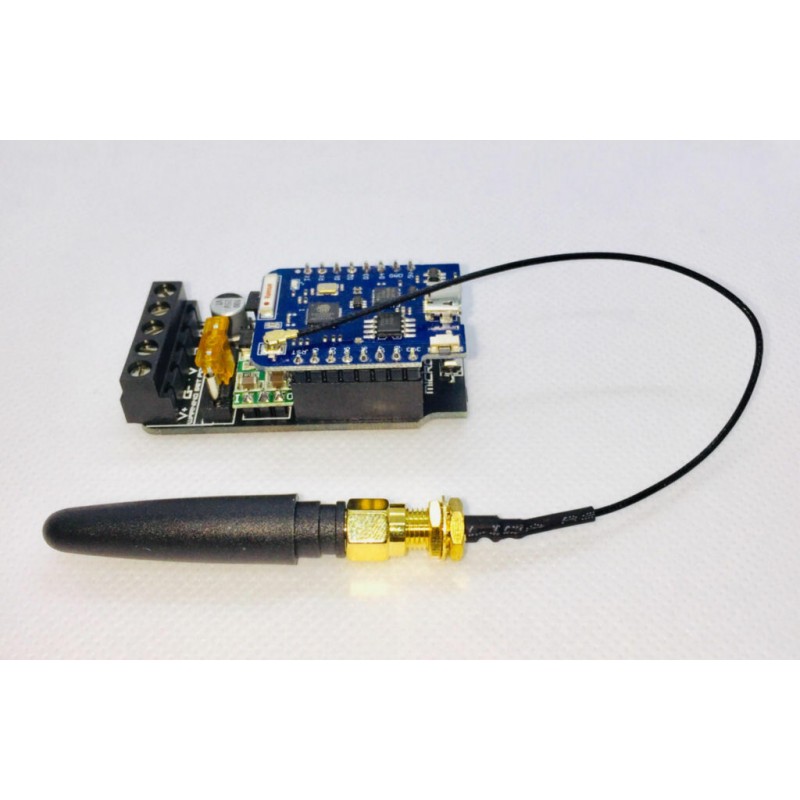

5v - 12V Artstick SD-Card / WiFi Pro Edition (WLED pre-Installed) - end of line product (condition unknown)

These are end of line products which have been sat on the shelf and we are now clearing out the old stock. All product information is as below:-

WLED PRE-INSTALLED (Scroll down for setup and Usage)

Pro edition Pixel controller allowing for the long range wireless pixel controller and/or fast stand alone Sequence Player from a SD card. Use WLED, PixelStick, or custom firmware to suit your needs.

FEATURES:

• allows for 5v - 12v power
• WEMOS D1 Mini Pro
• 3dBi 2.4ghz WIFI Antenna
• 100mm SMA Connector Cable
• SD Card reader slot up to 32 GB storage (Card not included)
• Shorter profile with solid build metal permanent terminal connectors
• Allows for upload or pre built firmware or custom code
• Data level shift for better pixel performance
• 5 - 12 power selection with dedicated power buck conversion
• IR Infrared

You can also change the firmware for WLED and others for WiFi controllable pixels.

In addition has hardware features for other software uses.
Program and Reset Button.
2.4 GHZ WiFi Pixel Controller
Data level shift for better pixel color and data control
Micro USB for easy programming
5 pin header screw terminal

Easy to read connectors for power and pixel connections

WLED USAGE:

When powering on your EspArtStick use a laptop, tablet, or phone and go into your WiFi connection settings.
Select WLED-AP
Password is wled1234
After connection, you will either get a new screen or will need to open up your internet browser and go to http://4.3.2.1
Update your WiFi router connection settings and set a static IP to use along with your routers gateway (normally 192.168.1.1)
Scroll to the bottom and check the disable WiFi Sleep, then click save and connect.

Go to your new Static IP address in your browser. Setup your LED count and other settings.

Make sure to go through your Sync setting for your E131.

In addition, you can also use the tool https://ledfx.app/ on your system for remote testing and other fun things.

Enable E1.31 support from the ‘Sync Settings’ page on the WLED web-interface.

Add the device as an E1.31 device.

If you have more than 170 LEDs click ‘Additional Properties’ and set the ‘Universe Size’ to 510.
