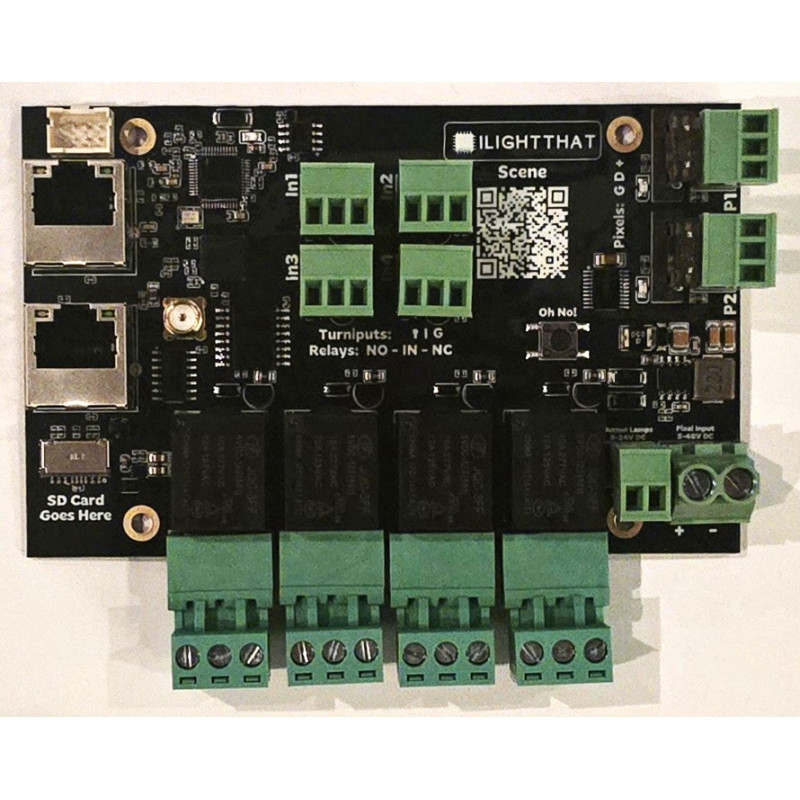

Baldrick Scene

The BaldrickScene is the ultimate board for Halloween, interactive shows and immersive escape rooms, featuring 4 relays, 4 Turniputs and 2 pixel outs.

Trigger a jumpscare, light up a pixel sign or turn on that bubble machine that doesn’t have DMX.

With the Baldrick firmware at its core you get full access to all the features such as CunningFX, The Turnip Network and the inbuilt Busk Board.

Board Features

2 x 100mb ethernet ports and an onboard switch for daisy chaining.
2 x pixel ports with support for 2250 channels per port (750 RGB pixels at 40fps)
4 x relay 4 channels, up to 8A and 300V (AC/DC)
Onboard wifi for CunningFX / board control
5-48V DC inputs
4 Turniput ports for full activation via buttons and/or sensors
Same medium footprint as the Baldrick8 so reuse those bases.
Full support for DDP, Art-Net, E1.31, sACN
Full xLights Support
SD Card for future expansion  - the ability to play fseq's from the onboard SD card should be in the next version of firmware
