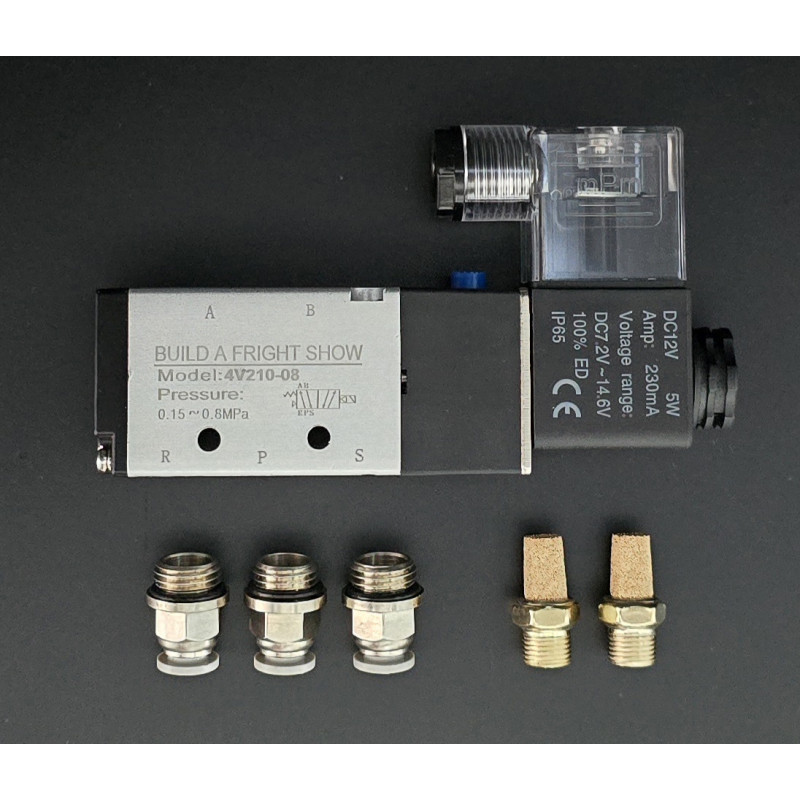

5-Way Solenoid Valve (6mm connectors)

Our 12V Solenoid-Actuated 5-Port Pneumatic Valve for Animatronics are perfect for bringing your creations to life with this 12V DC solenoid-actuated 5-port pneumatic valve.
It is the go-to control component for Halloween animatronic props, pneumatic cylinders, and air-powered scare effects. Designed for reliable, repeatable operation, this valve delivers the fast-acting, precise airflow control needed to drive cylinders, pop-up scares, swinging arms, lunging characters, and more.

How they work.
A 5-port valve (also called a 5/2 valve) has five air connections and two flow states. When the solenoid is energised at 12V DC, the valve shifts to direct pressurised air to one side of a double-acting cylinder, while simultaneously exhausting air from the other side — driving your cylinder/prop in one direction. When de-energized, a spring return shifts the spool back, reversing airflow and returning the prop to its resting position. This makes it ideal for any cylinder-driven animatronic effect that needs a quick extend-and-retract cycle.


Key points
12V DC solenoid actuation — compatible with pretty much any animatronic controller, relay boards, mechanical switches.
5-port / 2-position (5/2) configuration — controls double-acting cylinders with a single valve
Spring return — automatically resets to the safe/home position when power is removed
Fast response time — snappy actuation for sudden movements
Compact body — easy to mount within tight prop enclosures
Standard port sizing — This is for a valve with 6mm ports - we have another product for one with 8mm ports if you want more airflow.Operates in a 22-120PSI pressure range

Typical Animatronic Applications
Lunging monsters and pop-up skeletons
Swinging, stabbing, or grabbing arm effects
Jaw and head movement mechanisms
Trap doors and drop panels
Pneumatic fog or air-blast startle effects

Wiring & Control
At 12V DC, this valve can be switched directly from a relay output on any animatronic controller
