ESPartStick 5v Enhanced (Terminal Connector) | Pixel Controllers
  • ESPartStick 5v Enhanced (Terminal Connector) | Pixel Controllers

ESPartStick 5v Enhanced (Terminal Connector)

SKU-241
Rating
£26.99
VAT included
Quantity
Awaiting new stock

Description

ESPartStick 5v Enhanced (Terminal Connector)

For those with a smaller demand, or tighter budget, our friends at ESPartStick.com have bought you the answer

5v Enhanced edition
2.4 GHZ WiFi Pixel Controller
Data level shifter for long distance cabling
Reset & Program buttons
Micro USB for easy programming
Compatible for all connector types
Includes six pin header screw terminal

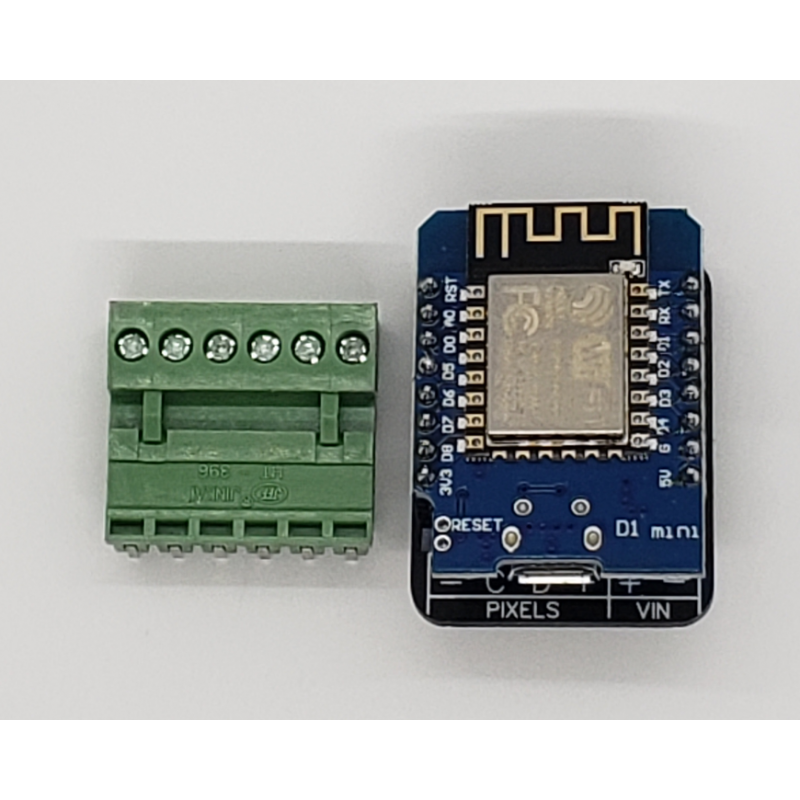

Wemos D1 mini along with the enhanced ESP Art Stick 12v pixel shield.

Additional HT396 Plug in Terminal Block male/female connector included not soldered onto the board allowing you the option to use your own wiring or add in the plug screw connector.

HT396_Plug_jpg

Controller to pixels over 50ft
Able to handle over 1024 pixels

This pixel control shield allows for a dedicated data out with true 5v power and data allowing to use this with any neopixel from Dotstar, WS2811, and WS2812B, and more.
100% compatible with the ESPixelStick firmware allows you to simply plug in this device to you computer to upload. No more extra hardware and cables to program.
Use for addressable LED matrix, strings, or make you own custom Arduino programs to expand you possibilities.
This add on shield works with the Wemos D1 mini so easy to plug and play into your existing props, or MQTT IOT devices.
With a 2.4ghx WiFi and 160 mhz of speed, and a dedicated micro USB port, you can make your devices battery powered allowing the ESPArtStick to send the power and data to you LEDs or servos.

Installation steps found here: Installation of EsPixelFirmware
